Nitrogen Gas plant supplied to cable company for CCV process

MVS supplied two PSA Nitrogen plants to one of India?s largest cable Manufacturer with manufacturing facilities in Pune and Goa.

The early nineties saw this Group expanding into new business domains to manufacture Optic Fiber Cables and Copper Rods. Today the Group turnover exceeds Rs. 30 Billion (about US $ 750 million)

MVS has supplied 25-Nitrogen Plants for CCV application to several countries in Asia and Middle-East. Our Nitrogen Dry Curing value package provides a nitrogen supply and the necessary equipment for the dry curing process. The nitrogen atmosphere is the correct solution for cable materials which are sensitive to oxygen and moisture.

What MVS provides:

??? ?Product quality is ensured with the Nitrogen Dry Curing process. Versatility of the line is extended to include production of cables which require a dry curing atmosphere.

??? ?Cables can be cured without the presence of oxygen and moisture

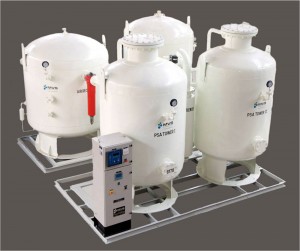

Customer procured PSA Nitrogen Gas Plants from MVS of following specifications:

Technology : PSA Technology

Application : CCV process (Cable curing process)

Process:

Many years ago, steam was used for curing process of electrical cables. However, in the late 1990?s, the steam curing process was replaced in by dry Nitrogen gas and under Nitrogen curing now worldwide thousands of curing lines are being operated and HT cables are being manufactured.

The curing process needs continuous Nitrogen at 12 to 18-Bar pressure. MVS has successfully supplied high pressure Nitrogen generators for these requirements.

Also Read

• Nitrogen Is Widely Used In The Pharma Industry For Blanketing, Handling And Packaging

• Nitrogen Gas Finds Use Extensively In Cement Plants Where Pulverized Coal Is Used


• Nitrogen Generator For Pit Type Furnace – Automotive Components Manufacturing

• PSA Nitrogen Plant – Snack Food Packing Line – South India

From a on-site Nitrogen generator, Nitrogen is produced at 5 to 7 bar pressure and thereafter Nitrogen pressure is boosted by a Booster compressor to 25 bar pressure and Nitrogen is stored in high pressure tanks.

Then Nitrogen from Storage tank is used in curing line through an Automatic Pressure reducing valve. Nitrogen storage tanks take care of fluctuating Nitrogen demand and also very high Nitrogen flow required during curing line start-up when large quantity of Nitrogen used in a very short time for purging.

In such application, Nitrogen purity of 99.9% is used. Nitrogen dew point is around (-) 60?C for achieving better insulation properties.

About MVS Engineering Limited

MVS Engineering is a turnkey supplier of Gas generation equipment for Nitrogen, Oxygen and Hydrogen gases. Additionally, we also manufacture Air, Gas, Liquid Dryers and also Gas Purification systems. MVS is the largest supplier of gaseous Nitrogen, Oxygen and Hydrogen plants in India. Besides India, MVS also regularly exports it?s equipment to the Middle East, Africa, South East Asia and Europe.

MVS was founded in 1977 and has supplied over 8000 skid-mounted units worldwide. Read more about the company in the About Us section of our website.
